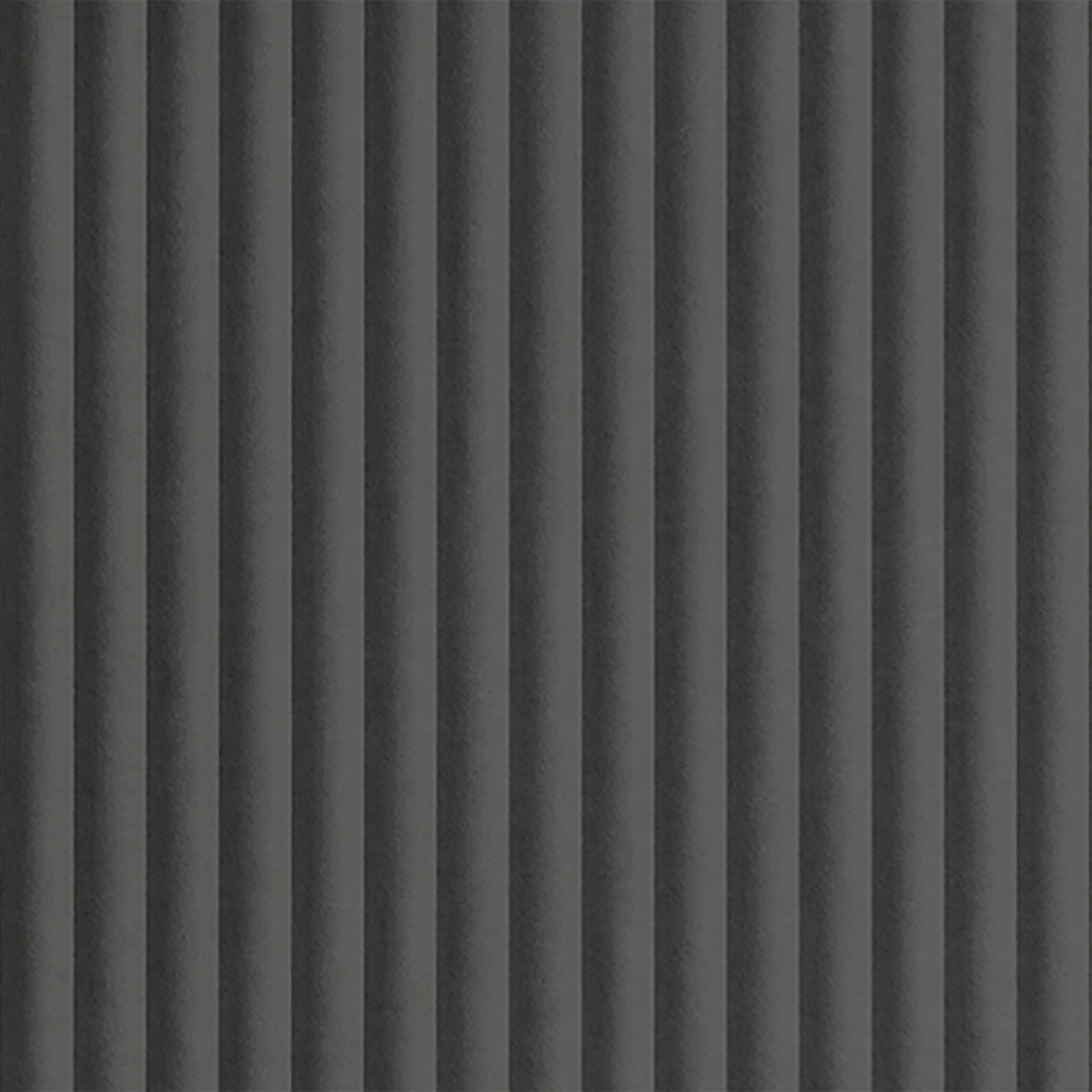

ECHOPANEL® Zen Embossed Panel Slate
Zen is the first design in our multi award-winning embossed acoustic panel series.
Inspired by the lines and grooves of a Japanese Zen garden, this 3D surface finish interweaves design innovation with sustainability and commercial performance. These sound absorbing panels are made by combining a recycled PET backing with the coloured surface finish of Mura, which is embossed on one face. The back of the panel remains flat for easy installation to walls and ceilings.
The collection is Global GreenTag™ certified, has published ingredient transparency through Declare and low VOC emissions.
Need your sheet Cut To Size?
We offer a unique range of CNC knife cutting, laser cutting, etching and design services.
-
Global GreenTag™ GreenRATE Level A, Declare, Red List Free, Low VOC Emissions. Read more about Sustainability and Accreditations.
-
Part of a unique embossed series ideal for continuous wall applications, lightweight, noise reduction.
-
Noise Reduction Coefficient (NRC) = Direct fix: 0.30, 20mm air gap: 0.50, 50mm air gap: 0.70. Achieves an NRC of 0.75 with a 18mm acoustic backing.
-
ASTM E84 Unadhered: Class 1 or A, BS EN 13501.1: Classification B – s1, d0
ISO 9705: Group 1
Detail & Specifications
Specifications
EchoPanel® has an Environmental Product Declaration (EPD) life-cycle assessment, the highest Global GreenTag certification (GreenRate Level A) and Platinum Product Health Declaration, is Red-List free with low VOC (Volatile Organic Compound) emissions and has published ingredient transparency through Declare.
Refer to our Installation Guides for detailed instructions or contact us for recommended installers.
