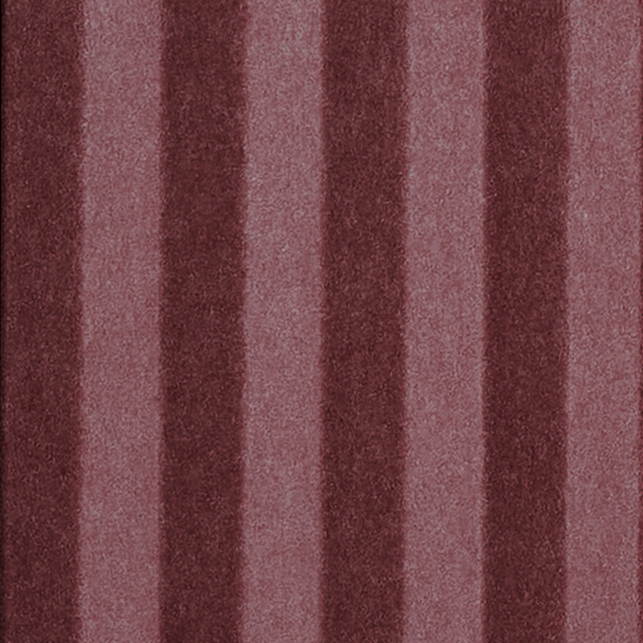

ECHOPANEL® Ascent Tile Wine
Ascent is a three-dimensional formed tile, featuring the soft-touch finish of Mura with advanced acoustic properties.
The large-scale pleated design mimics corrugated surfaces frequently found in architecture and creates a dramatic contrast between light and shadow in continuous wall applications. Our 3D tiles are installed using a series of clips, meaning no adhesives are required and tiles can easily be popped out and replaced. Achieving a Noise Reduction Coefficient (NRC) of 0.70, which can be increased to 0.90 with the use of an acoustic infill, Ascent is ideal for busy environments where both acoustic comfort and design aesthetics matter.
Need your sheet Cut To Size?
We offer a unique range of CNC knife cutting, laser cutting, etching and design services.
-
Global GreenTag™ GreenRATE Level A, EPD (Environmental Product Declaration), Global GreenTag™ Product Health Declaration (PHD) – Platinum HealthRATE, Declare, Red List Free, Low VOC Emissions. Read more about Sustainability.
-
A three-dimensional formed tile for wall applications, lightweight, noise reduction.
-
Noise Reduction Coefficient (NRC) = Direct fix: 0.70
-
AS 3837: Group 3, ASTM E84 Unadhered: Class 1 or A, BS EN 13501.1: Classification B – s1, d0, GB 8624 B1.
Detail & Specifications
Specifications
EchoPanel® has an Environmental Product Declaration (EPD) life-cycle assessment, the highest Global GreenTag certification (GreenRate Level A) and Platinum Product Health Declaration, is Red-List free with low VOC (Volatile Organic Compound) emissions and has published ingredient transparency through Declare.
Refer to our Installation Guides for detailed instructions or contact us for recommended installers.
