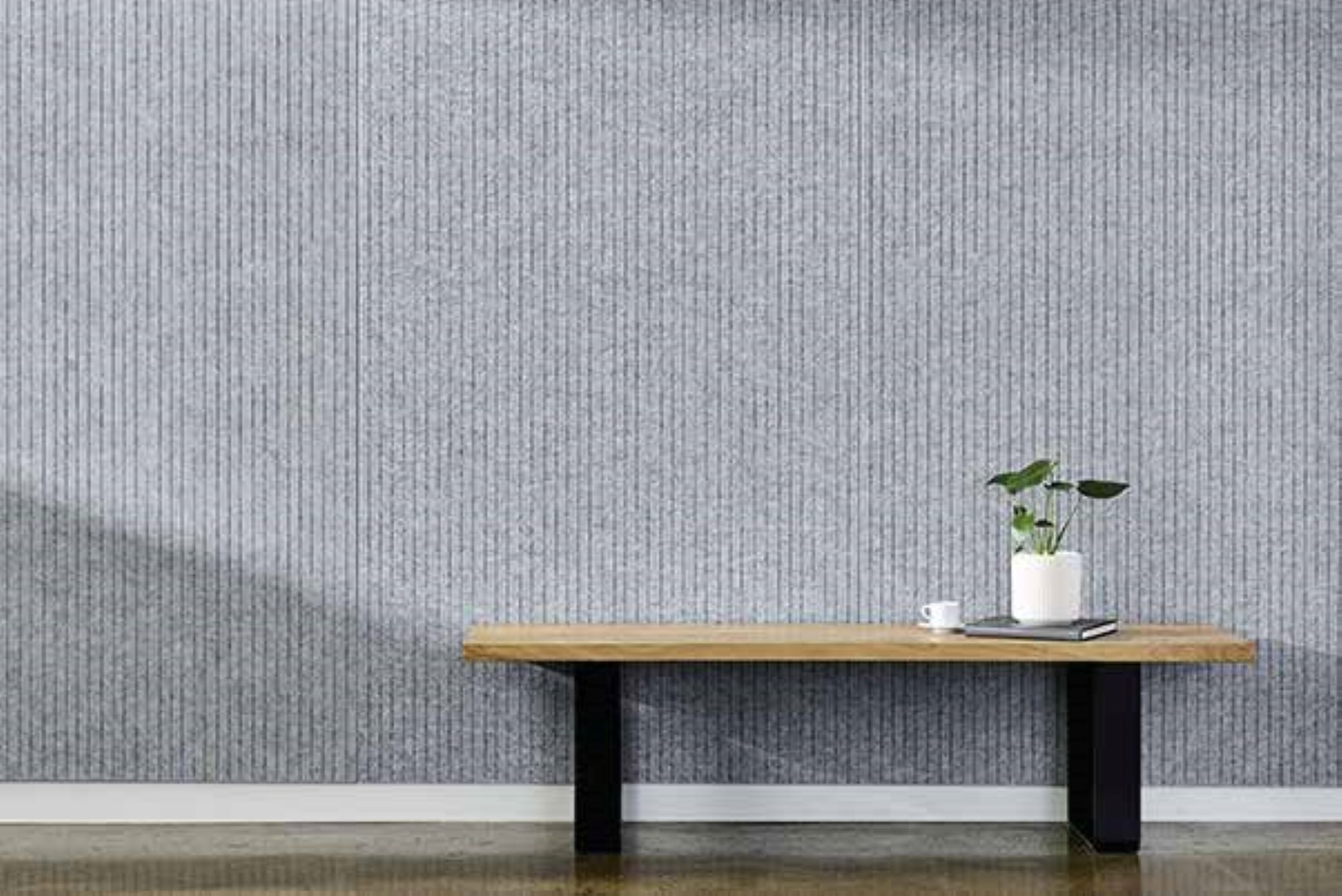

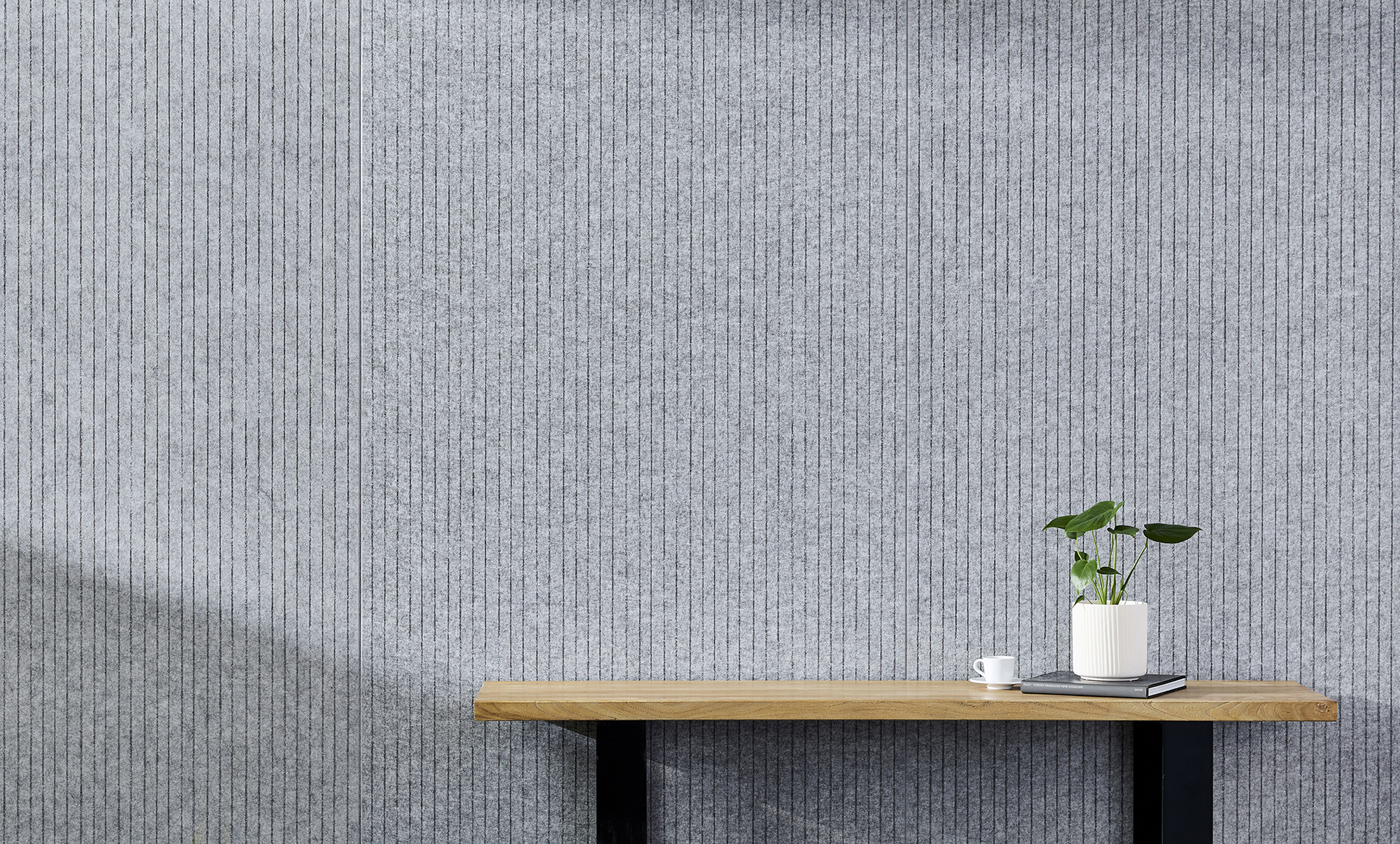

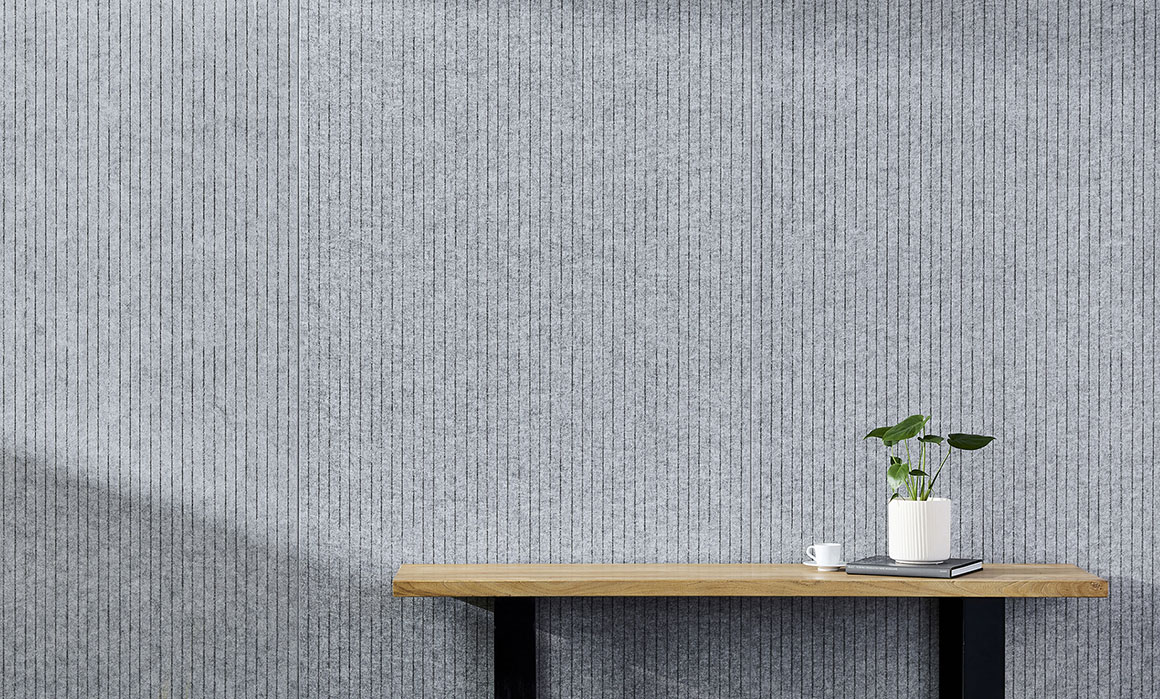

Umbratex™ Rawline
Umbratex™ Rawline is a decorative acoustic panel that combines the proven acoustic performance of genuine EchoPanel® with a precision laser-etched linear texture. Umbratex™ Rawline is inspired by natural woven fibres. It introduces subtle depth and tactile character to feature walls, workplace interiors and commercial spaces while retaining the acoustic performance architects expect from EchoPanel®.
Umbratex™ Rawline’s line weight and pattern density have been carefully developed to provide consistent visual definition across the EchoPanel® colour palette, including darker fibre colours such as 442 Grey and 454 Mushroom.
Precision Etched Technology
Umbratex™ surface finishes are created using a purpose-built large-format laser system that permanently etches the surface of genuine EchoPanel® acoustic panels. The process produces visual depth, subtle variation and tactile character without inks, laminates or applied coatings.
Features & Benefits
-
The Umbratex™ range are a collection of permanent laser-etched surface finishes. Each pattern in the collection has a distinctive tactile texture with no inks or surface coatings.
-
- Manufactured using EchoPanel® acoustic panels as the base material.
- 100% PET (60%-80% post-consumer recycled)*.
-
Designed for seamless multi-panel installations*.
*Refer to individual design specifications for pattern repeat options. -
- Available in multiple colours
- Custom fabrication available
-
Umbratex™ Acoustic Collection is Australian designed and made exclusively by Mitchell Group Australia.
Detail & Specifications
Specifications
Pattern & Layout
Umbratex™ Rawline panels are installed side by side. Refer to the individual design specification sheet for the recommended panel layout. Download specification PDF.
Base Material Performance
Umbratex™ is manufactured on EchoPanel®. For information regarding the performance, sustainability, physical properties, and maintenance of the base material, refer to the current EchoPanel® Technical Data Sheet. These specifications relate to unmodified EchoPanel® only and have not been independently tested or certified following the Umbratex® laser-etching process.
Product name and code: Rawline - UTX1
Base material: EchoPanel® PET Acoustic Panel
Finish: Permanent laser-etched texture
Edge detail: Standard Bevel (long edges only)
Sheet size: Length: 2750 mm (±2 mm), Width: 1150mm (±2 mm). Thickness: 12 mm (±7%) or 24 mm (±7%)
